External Wall Cladding System(Type:EC)

"APEZ" also design and manufacture purpose-made wall cladding system for external application. This system can be used to solve the problems of heat gain and humidity whilst protecting the masonry or concrete constructions.Produced on advanced manufacturing equipment,the high quality precision engineered claddings are flat and dimensionally stable. The wallcladdings are available with square or rounded edges that afford different types of joining details such as hairline, butt or shadow gap. Variousfinishes are available,i.e., PVDF, More specialised architectural materials such as are also available."APEZ" can also manufacture accessory items such as column claddings, atrium bulk heads and light troughs,etc., enabling us to provide acomplete service ensuring qualitites build throughtout completion of the project.

Components

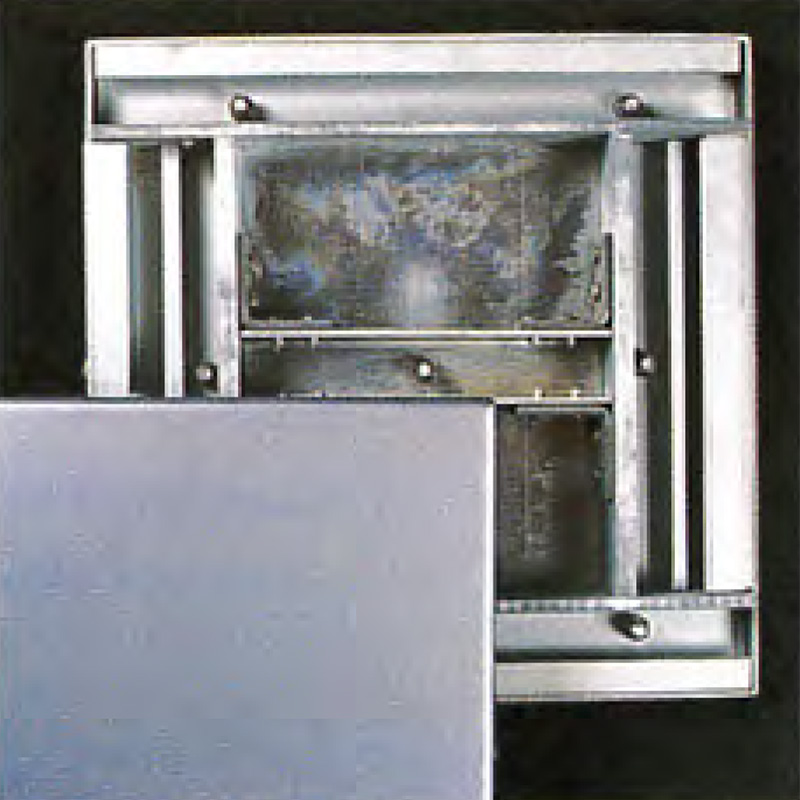

The EC System comprises of three Imain elements;the primary mounting brackets, the primary mounting channels and the cladding panels.

Installation

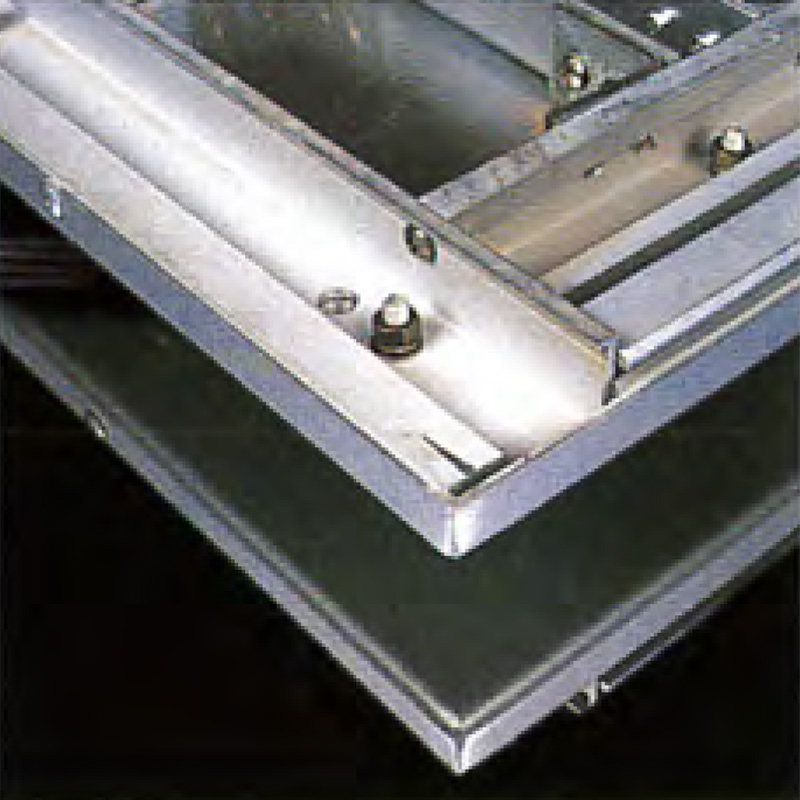

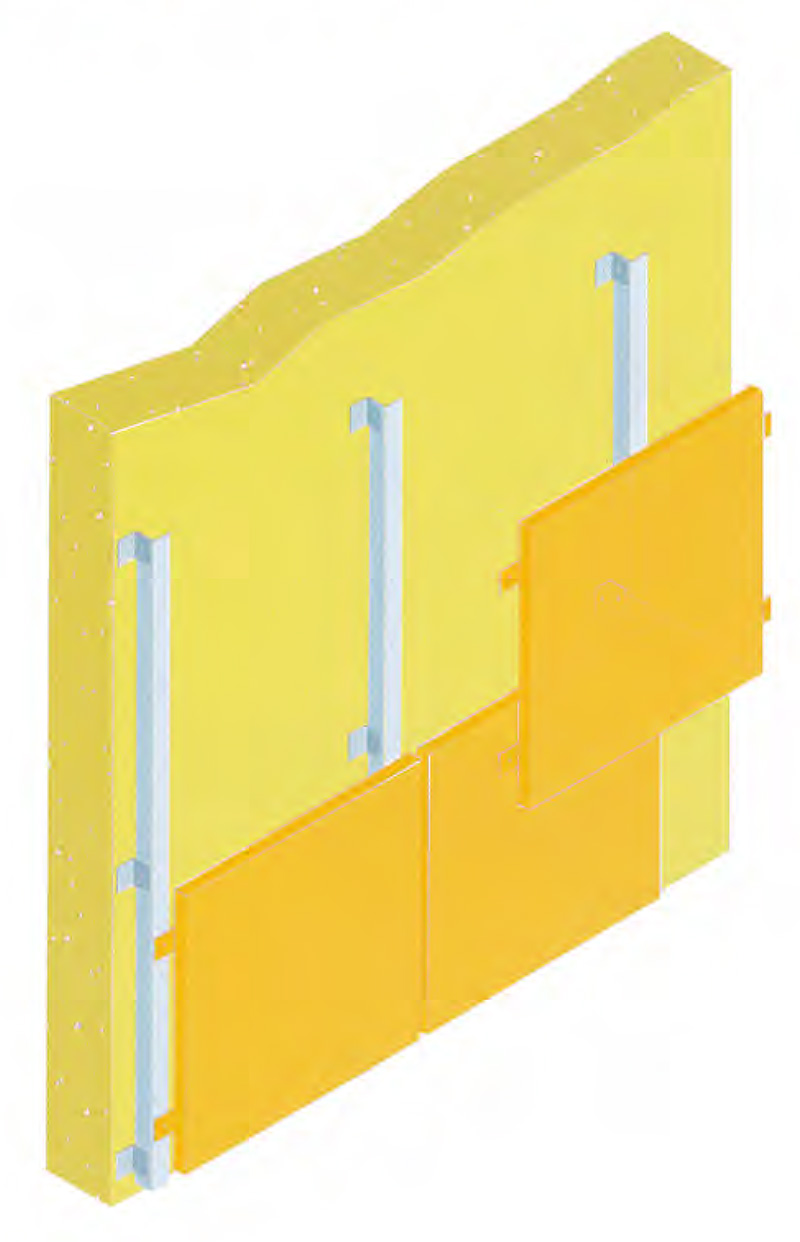

The primary mounting brackets are fixed to the face of the building with tested and approved stud anchor bolts. The primary channels are bolted to the mounting brackets that are provided with slotted holes for ease of alignment(the subframe).

The cladding panels are located onto bolts in the primary channels, then pushed downwards and locked into position(hook-on arrangement).

Advantages

• Cost effective metal cladding system
• Quick to install cladding system
• Choice of materials and colours
• Optional joint details
• Excellent durability and protection
• Easy to maintain and clean
